Dettagli:
|
| nome: | Setaccio molecolare di vetro d'isolamento | Dimensione: | diametro 0.3cm/0.5 |
|---|---|---|---|
| CARATTERISTICHE: | Capacità ad alta resistenza e alta di adsorbimento, uniformità della particella | ||
| Evidenziare: | macchina di rifornimento di vetro,riempitore disseccante |
||

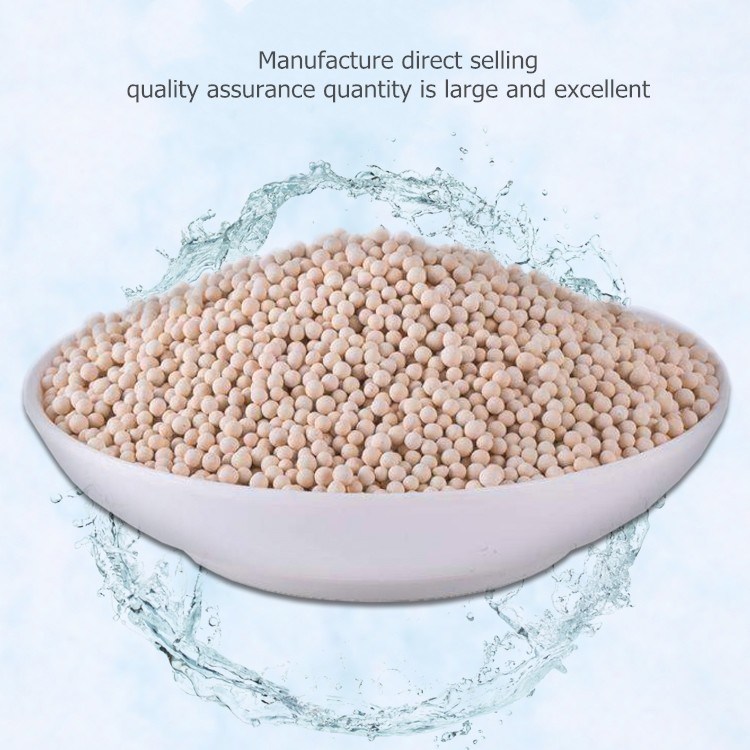

Molecular Sieve type 5A is an alkali alumino silicate; it is the calcium form of the Type A crystal structure. Type 5A has an effective pore opening of 5 angstroms (0.5 nm). It will adsorb molecules with a kinetic diameter of less than 5 Angstrom and exclude those larger.
It is especially suitable for PSA adsorber applications where it may be used for the separation of normal- and iso- paraffins (C4 to C6 species), in PSA hydrogen purification and in oxygen concentrators.
Typical Chemical Formula
0.70CaO 0.30Na2O Al2O3 2.0SiO2 4.5H2O
SiO2: Al2O3 ≈2
Typical Application
Technical Parameter
| Item | Unit | Technical data | |||
| Shape | Pellet | Sphere | |||
| Diameter | mm | 1.5-1.7 | 3.0-3.3 | 2.0-3.0 | 3.0-5.0 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
| Bulk density | g/ml | ≥0.65 | ≥0.65 | ≥0.70 | ≥0.70 |
| Wear ratio | % | ≤0.20 | ≤0.40 | ≤0.20 | ≤0.20 |
| Crushing strength | N | ≥30/cm | ≥45/cm | ≥30/p | ≥60/p |
| Static water adsorption | % | ≥22 | ≥22 | ≥22 | ≥22 |
| Water content, as shipped | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Application
1) The strong ionic forces of the divalent calcium ion makes it an excellent adsorbent to remove water, CO2, H2S from sour natural gas streams, while minimising COS formation. Light mercaptans are also adsorbed.
2) It is also used for the separation of normal- and iso paraffins.
3) Production of high purity N2, O2, H2 and inert gases from mixed gas streams.
Packaging & Delivery
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatic robot insulaiting glass production line and so on.
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
